How to Extend C Drive in Windows 10 without Formatting or Losing Data

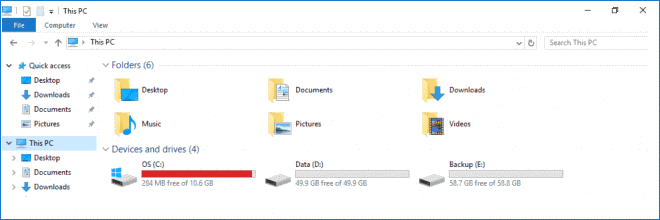

When your C drive is running low on disk space, it turns red and your computer frequently prompts you about insufficient disk space on the local disk (C:). To resolve this issue, you need to increase the system partition size. You can expand a volume by adding space from one or more other disks.

There are three effective methods to extend the C volume without data loss: Windows built-in Disk Management, Diskpart.exe, and iSumsoft Cloner. If you have other hard drives available, you can add a new hard drive and clone or copy system data and files to the new hard disk. The "Disk Copy" feature of iSumsoft Cloner allows you to do this without reinstalling the operating system and applications.

Detailed steps: How to increase C disk space by adding a new hard drive (SSD/HDD)

Extend C Drive in Windows 10 with Windows Built-in Tools

You will learn how to merge other partitions into the C drive for more space using the extend volume feature. The "Extend Volume" option is available only if there is unallocated space behind the partition you want to extend. If there is no unallocated space next to the partition to be increased, you need to free up space on the adjacent partition. The first crucial step is to back up all data and files in the adjacent partition on the right side, and then delete that partition to make it an unallocated partition.

Option 1: Extend C Drive without Formatting with Disk Management

1. Open Disk Management.

Press Win + X to open the WinX menu, and then hit the K key to open Disk Management.

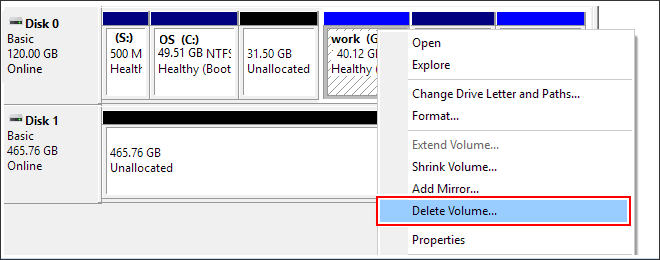

2. In Disk Management, you can see the system (primary) partition displayed in navy-blue, and the Unallocated one in black. Right-click on the adjacent partition and select Delete Volume. Then, click Yes to confirm this action.

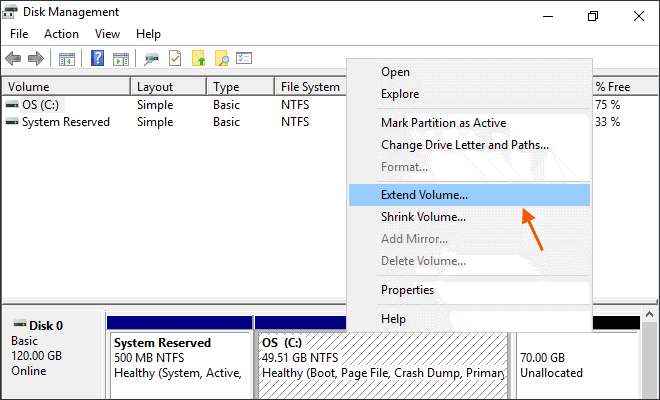

3. You can see that an unallocated space has been generated to the right of partition C. Right-click on the system partition (C:) and select the "Extend Volume" option.

4. The Extend Volume Wizard will pop up. Click Next to finish this process.

Note: If you can't extend the volume in Windows Disk Management and the Extend Volume option is grayed out, try using the Delete partition or Delete partition override command instead.

Option 2: Extend C Drive in Windows 10 without Formatting with Diskpart

If there is no unallocated space behind the system volume, you must first delete the adjacent drive to obtain unallocated space by entering the following commands.

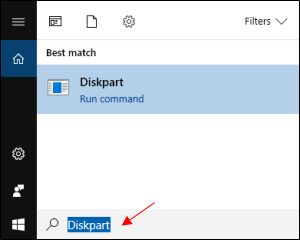

Type "Diskpart" in the Search Bar and hit the Enter key to open the Diskpart utility.

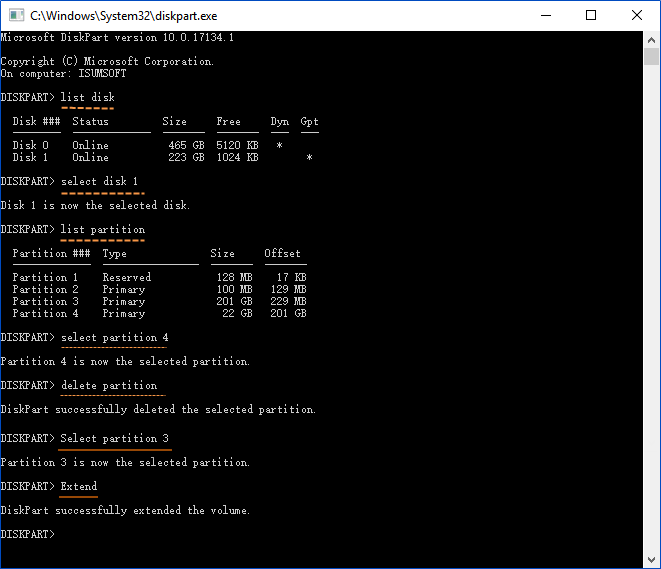

1. Enter the "list disk" command and press Enter. All disks will be listed.

2. Enter the "select disk n" command to select the target disk and press Enter.

3. Type "list partition" and press Enter. All partitions will be listed.

4. Select the adjacent partition by typing "select partition x" and pressing Enter.

5. Enter "Delete partition" and press Enter. (You can use the "Delete partition override" command instead if it fails to delete the selected partition.)

6. Enter Select partition y to select the target partition that you want to extend.

7. Enter the Extend command and press Enter. After completion, exit the Diskpart window.

Increase C Drive Space in Windows 10 without Formatting by Adding a New Hard Drive (SSD/HDD)

iSumsoft Cloner is professional software that enables you to securely transfer all data and boot partitions from the HDD to a new SSD without reinstalling the OS and programs. You can directly download the free partition cloning tool and follow the steps below to clone C drive data to a new disk in Windows 7/8/10.

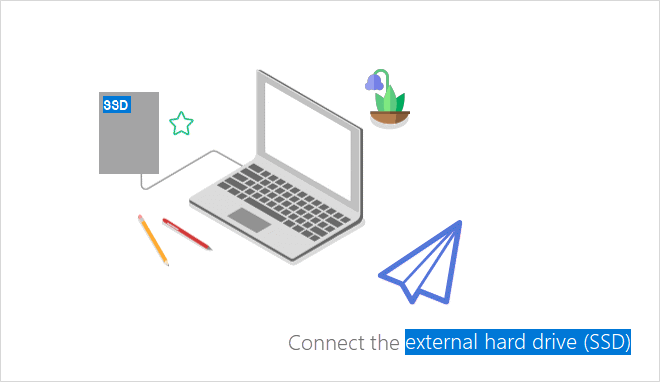

Step 1: Connect the new hard drive to your computer.

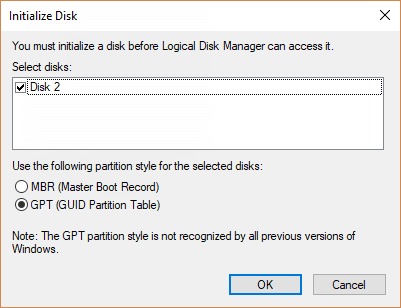

Step 2: Initialize the new hard drive.

It's recommended to convert the new hard disk to MBR or GPT - exactly the same as your current system requirement - which will allow you to boot your system effortlessly after cloning your Windows system.

Step 3: Copy the Windows 10 system disk to the new hard drive (HDD/SSD)

• Install iSumsoft Cloner and run it.

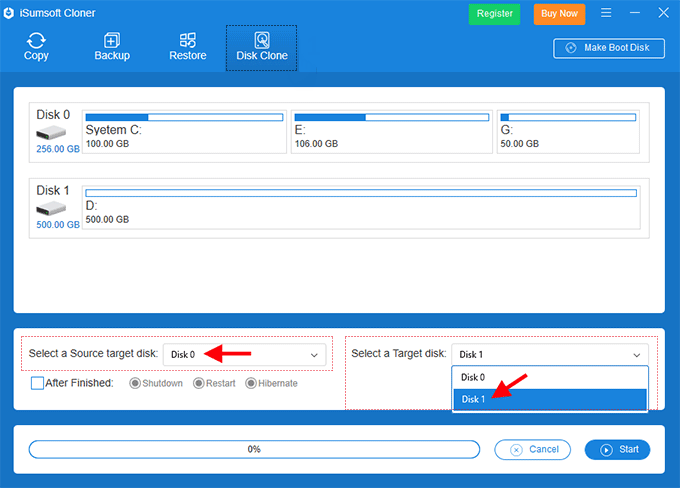

• Select the "Disk Clone" option in the upper left corner of the interface.
• Select a drive letter where the operating system is installed (for example, C:) as the source partition.
• Select a different hard drive as the target partition.

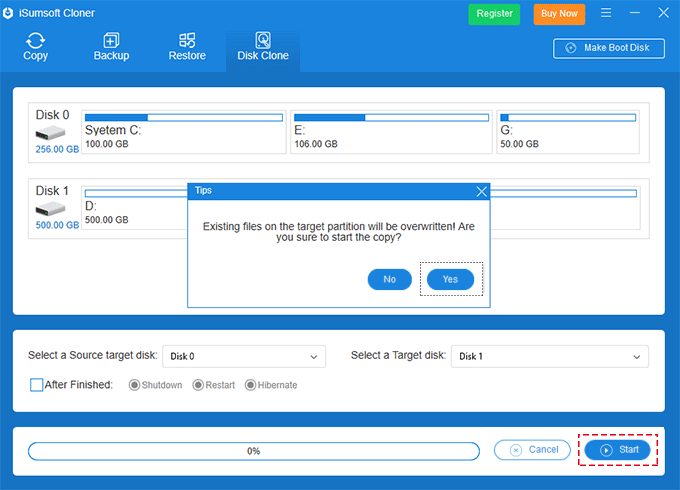

Step 4: Now click the Start button in the lower right corner of the interface. When a dialog box pops up asking if you are sure to start copying, click Yes to start copying. Note that the target partition (disk) will be formatted, so ensure you back up important data stored on the target partition in advance.

Step 5: After the copying process is completed, restart the PC and set it up to boot from the new hard drive.

• Restart the PC and press the required key to enter the BIOS setup.
• In the Setup, find the Boot section. Then, set your SSD as the first boot option and save all changes.
• Exit the BIOS and restart your computer.

After that, your computer will run a cloned Windows operating system, and the C drive should be increased.

Conclusion on Increasing the Windows OS Partition

It is very easy to extend the C drive without reinstalling the operating system. If your system has insufficient partition space, you can easily and quickly increase the C drive space by following the above solution. When Disk Management is unable to complete the task, you can use Diskpart.exe. If you find your C drive is running out of space frequently and your computer runs very slow, it may be necessary to upgrade or add another hard disk to your computer. You can use iSumsoft Cloner to migrate the system partition to a new hard disk. With this tool, you can manage your disks or partitions safely and effectively. Don't hesitate to give it a try.
